詳細情報 |
|||
| フィードサイズ: | 400x600mm | 最大フィードサイズ: | 340mm |
|---|---|---|---|
| 放出ポートの調整範囲: | 40-100mm | 容量: | 10〜50tph |
| スピード: | 275r/min | モーターパワー: | 30kW |
| 重さ: | 6.5T | 名前型: | ディーゼルポータブルジョークラッシャー |
製品の説明

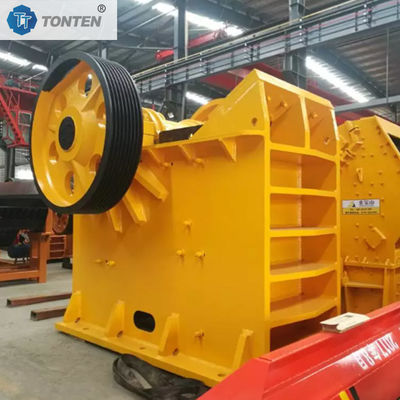

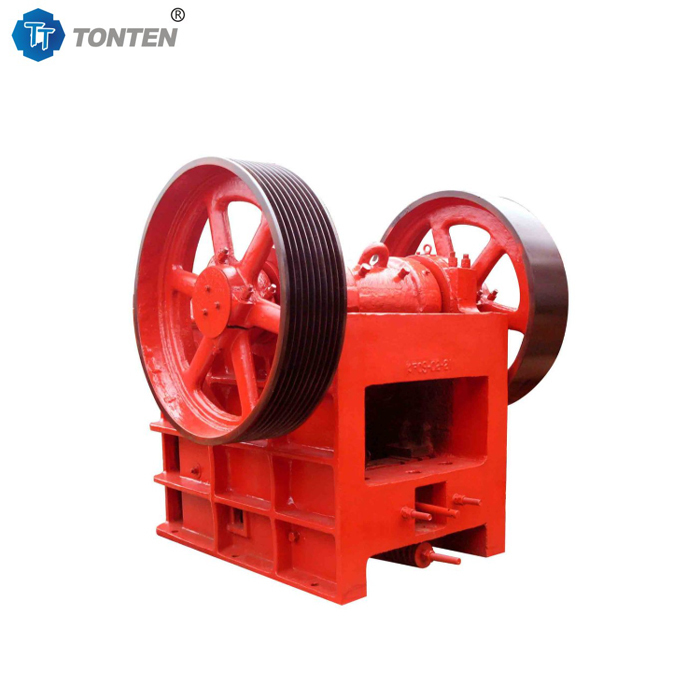

Pe400x600 Diesel Portable Jaw Crusher Rock Jaw Crusher Machine
Overview:
Crushers are essential equipment in industries such as mining, construction, and metallurgy. Diesel mobile jaw crusher is widely used in mines, construction sites, waste disposal and other fields. It is particularly suitable for crushing operations that require frequent movement.Their primary function is to break large raw materials into smaller particles for subsequent processing and utilization. Among various types of crushing equipment, jaw crushers are widely used for crushing a variety of materials due to their simple structure, reliable operation, and easy maintenance. Furthermore, the emergence of mobile crushers has greatly improved the flexibility and efficiency of crushing operations.
Working Principle:
The diesel mobile jaw crusher operates on a similar principle to a fixed jaw crusher. It primarily consists of a frame, jaw plates, eccentric shaft, and transmission mechanism. When the machine is started, the diesel engine drives the eccentric shaft, causing the movable jaw to swing up and down, forming a crushing chamber with the fixed jaw. Within the crushing chamber, the material is crushed by compression, tearing, and other forces.
Diesel Mobile Jaw Crusher:
Diesel mobile jaw crushers machine are mobile crushing equipment powered by a diesel engine. Compared to fixed crushers, they offer significant advantages in mobility and adaptability. Key features include:
Autonomous Power Supply: Powered by a diesel engine, they require no external power source, making them suitable for use in remote areas or locations lacking power.
High Flexibility: The TONTEN Machinery jaw crusher equipmnet can be moved between different work sites as needed, reducing transportation costs and time.
High Adaptability: The equipment can handle a wide range of materials, such as rock, ore, and concrete, and has a wide range of applications.
Easy Operation: The advanced control system and user-friendly interface make it easy for operators to use.
Jaw crusher machine specification:
|
Model |
Feed port size (mm) |
Maximum feed size (mm) |
Discharge port adjustment range (mm) |
Machine capacity (T/H) |
Speed |
Power (KW) |
Weight |
| PE-250X400 | 250X400 | 210 | 20-60 | 5-20 | 300r/min | 15 | 2.8T |
| PE-400X600 | 400X600 | 360 | 40-100 | 16-50 | 260r/min | 30 | 7.5T |
| PE-500X750 | 500X750 | 450 | 50-100 | 40-100 | 275r/min | 55 | 12T |
| PE-600X900 | 600X900 | 500 | 65-160 | 50-150 | 250r/min | 75 | 18T |
| PE-750X1060 | 750X1060 | 650 | 80-140 | 110-300 | 250r/min | 90-110 | 29T |
| PE-900X1200 |
900X1200 |
780 | 90-165 | 220-350 | 200r/min | 110-132 | 36T |
| PE-1200X1500 | 1200X1500 | 1100 | 150-300 | 400-500 | 180r/min | 160-180 | 52T |
| PEX-250X750 | 250X750 | 210 | 25-60 | 13-50 | 300r/min | 30 | 5.5T |
| PEX-250X1000 | 250X1000 | 210 | 25-80 | 20-80 | 330r/min | 42 | 7.1T |
