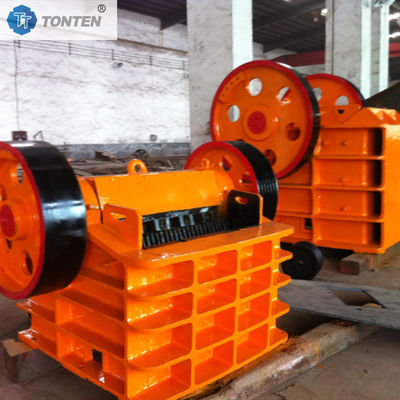

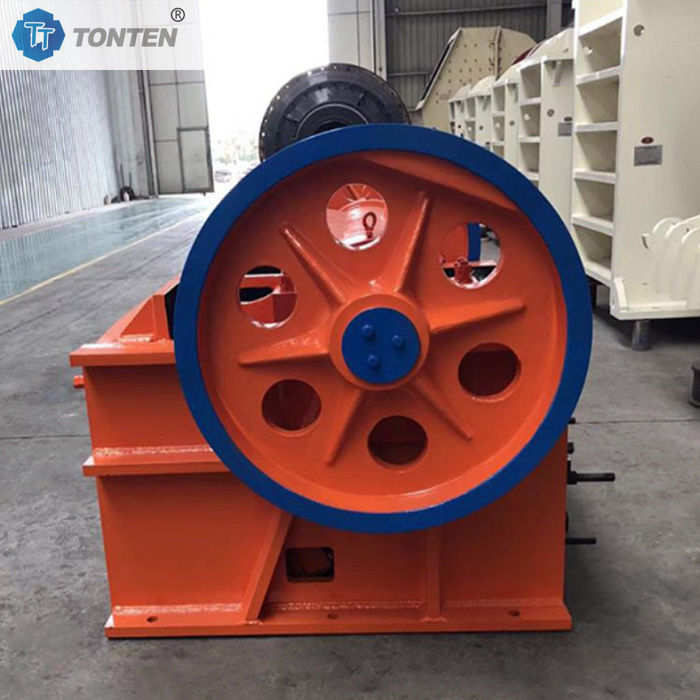

High Efficiency Jaw Crusher Machine 400*600 Type Industrial Crushing Essential
The jaw crusher is a robust primary crushing equipment designed for hard and abrasive materials. It’s a cornerstone in mining, construction, and aggregate production, delivering reliable performance for bulk material reduction. Jaw crushers feature a large crushing ratio, high output, uniform particle size, simple structure, reliable operation, and easy maintenance. It comes in different models, allowing you to choose the appropriate model for different production volumes.
The jaw crusher mainly consists of a frame, eccentric shaft, large pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate seat, adjusting screw, return spring, fixed jaw plate and moving jaw plate, among which the toggle plate also serves as a safety device.
Adopting the "compression crushing" mechanism, the crusher features a fixed jaw plate and a movable jaw plate. Driven by the eccentric shaft, the movable jaw moves back and forth to squeeze, crush, and bend materials between the two plates. Materials are fed from the top inlet, gradually reduced to the desired size, and discharged from the bottom outlet.
|
Items
|
Main Technical Parameters |
|
Feed size
|
400*600mm |
| Max feeding size |
340mm |
| Adjustable size of discharge opening |
400-100mm |
| Capacity |
16-60t/h |
| Rotation speed of eccentic shaft |
275r/min |
| Motor power |
30kw |
| Model |
400*600 Type |
①Exceptional durability with high-strength steel frame and wear-resistant jaw plates, extending service life.
②Adjustable discharge gap to flexibly meet different particle size requirements for diverse applications.
③Energy-efficient design with low power consumption and high crushing ratio, reducing operational costs.
④Simple structure, easy installation, and convenient maintenance, minimizing downtime.
Widely used in mining (crushing iron ore, limestone, granite, etc.), construction demolition (recycling concrete and asphalt), road and bridge construction (producing aggregates), and cement manufacturing. Ideal for primary crushing of materials with Mohs hardness 3-10.
①Mining
Primary crushing of various ores: Such as iron ore, copper, gold ore, and manganese ore.
②Aggregate Production
Quarries for sand and gravel: Produces high-quality base course, sub-base, and concrete aggregates from granite, basalt, and limestone.
Why Choose Us?
* Factory-Direct Pricing: Competitive rates with no middleman markups.
* Customization Services: Tailor-made solutions to meet unique project needs.
* Fast Delivery: Timely shipment via reliable logistics partners worldwide.
In summary, if your operation requires reliable, efficient, and cost-effective primary crushing of hard materials, a Jaw Crusher is the indispensable solution.
